220V Thermostatic Ceramic Heating Element PTC Heater with Automatic Temperature Control and 10*2.5cm Dimensions

Material : Ceramic+yellow paper

Surface Temperature : +80°C ~ +280°C

Function : Heating with overheat protection

Resistance : 100-600 Ohms

Application : Machinery Repair Shops, Manufacturing Plant, Food & Bevera

Power : Electric

Color : Yellow

Brand Name : Hwalon

Model Number : PR4

Certification : RoHS

Place of Origin : China

MOQ : 500

Price : USD 0.27-2.16 per piece

Payment Terms : T/T,Western Union,Paypal

Supply Ability : 200,000

Delivery Time : 5-8 working days

Packaging Details : Poly bags + Carton boxes

Heating element : PTC

Contact Now

220V Thermostatic Ceramic Heating Element
Product Overview

PTC10x2.5cm electrical parts thermostatic ceramic heating element 220V heater with dimensions 10×2.5cm. Features automatic temperature control, stable uniform heat output, safe insulating layer, and customizable power and specifications.

Key Features
  • Constant temperature characteristics
  • No temperature controlling system required
  • Safe operation when liquid is burnt out in liquid heating devices
  • Not sensitive to voltage fluctuations
  • Wide operating voltage range
  • Automatic restoration after invalidation
Technical Specifications
Model NO. Pr4 Name PTC Thermistor
Max operating voltage 15V~270V rms Surge Voltage Withstanding 400V~900V rms
Rated Voltage 3.6V~240V rms Tolerance of Resistance ±30% ~ ±50%
Tolerance of Surface Temp. ±3℃ ~ ±10℃ Operating Temp. Range -25~+125°C, 0~+60°C
Unit price Factory price MOQ 500Pcs
Sample Online negotiation Sample time 2-5 days
Design OEM & ODM available Payment terms T/T or online negotiation
Port of loading Shenzhen Certification SGS, RoHS, ISO9001
Typical Applications
  • Boiled-water equipment
  • Wax warmer, hair-curling equipment, glue gun, dehumidifier
  • Air-heating, wind-warming equipment, cold and warm air-conditioner
  • Physical treatment, massage apparatus, biology heating
  • Mosquito-driving apparatus, heating board
  • Shoe-drying apparatus, etc.

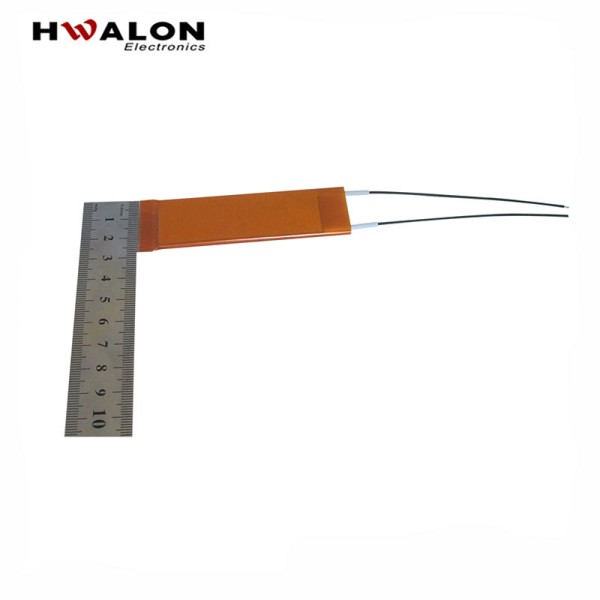

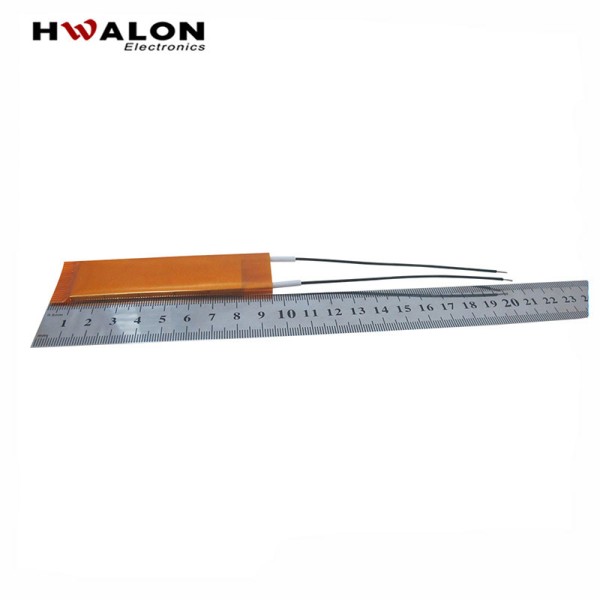

Product Images
220V Thermostatic Ceramic Heating Element PTC Heater with Automatic Temperature Control and 10*2.5cm Dimensions 220V Thermostatic Ceramic Heating Element PTC Heater with Automatic Temperature Control and 10*2.5cm Dimensions 220V Thermostatic Ceramic Heating Element PTC Heater with Automatic Temperature Control and 10*2.5cm Dimensions
Reference Drawing
220V Thermostatic Ceramic Heating Element PTC Heater with Automatic Temperature Control and 10*2.5cm Dimensions
Application Examples
220V Thermostatic Ceramic Heating Element PTC Heater with Automatic Temperature Control and 10*2.5cm Dimensions
Company Profile
  • 15 years' experience in PTC/NTC thermistor field
  • Main markets: Europe, North America, Asia
  • Competitive pricing with outstanding quality
  • On-time delivery
  • Inquiries answered within 24 hours
  • Professional consulting and production team
  • RoHS & UL compatible
  • OEM & ODM business accepted
Frequently Asked Questions
Question Answer
What is the MOQ? 500pcs
What is the payment terms? Negotiation
Can you accept special requirements? Yes, we can design for your special requirements
Can you make printing artworks in our language? Yes, we do OEM work and can accommodate language requirements
Can we order samples? Yes, free samples are available
Contact Us

Any needs, don't hesitate! Send us your inquiry now!

Price and samples can be offered immediately.

We respond to all inquiries within 24 hours.
